1. 用户模块（8081）

1.1 搭建环境

1.1.1 后端web服务：changgou4-service-web

l 修改pom.xml文档

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><parent><artifactId>changgou4-parent-ali</artifactId><groupId>com.czxy.changgou</groupId><version>1.0-SNAPSHOT</version></parent><modelVersion>4.0.0</modelVersion><artifactId>changgou4_service_web</artifactId><dependencies><!--自定义项目--><dependency><groupId>com.czxy.changgou</groupId><artifactId>changgou4_common_db</artifactId></dependency><dependency><groupId>com.czxy.changgou</groupId><artifactId>changgou4_pojo</artifactId></dependency><!--web起步依赖--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><!-- nacos 客户端 --><dependency><groupId>com.alibaba.nacos</groupId><artifactId>nacos-client</artifactId></dependency><!-- nacos 服务发现 --><dependency><groupId>com.alibaba.cloud</groupId><artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId></dependency><!--redis--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-data-redis</artifactId></dependency><dependency><groupId>redis.clients</groupId><artifactId>jedis</artifactId></dependency><!--swagger2--><dependency><groupId>io.springfox</groupId><artifactId>springfox-swagger2</artifactId></dependency><dependency><groupId>io.springfox</groupId><artifactId>springfox-swagger-ui</artifactId></dependency></dependencies></project>

l 创建application.yml文档

#端口号
server:port: 8081spring:application:name: web-service          #服务名datasource:driverClassName: com.mysql.jdbc.Driverurl: jdbc:mysql://127.0.0.1:3306/changgou_db?useUnicode=true&characterEncoding=utf8username: rootpassword: 1234druid:    #druid 连接池配置initial-size: 1       #初始化连接池大小min-idle: 1           #最小连接数max-active: 20        #最大连接数test-on-borrow: true  #获取连接时候验证，会影响性能redis:database:   0host: 127.0.0.1port: 6379cloud:nacos:discovery:server-addr: 127.0.0.1:8848   #nacos服务地址sentinel:transport:dashboard: 127.0.0.1:8080

l 创建启动类

package com.czxy.changgou4;import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;/* @author * @email */
@SpringBootApplication
@EnableDiscoveryClient
public class Web-serviceApplication {public static void main(String[] args) {SpringApplication.run( Web-serviceApplication.class , args );}
}

1.1.2 后端创建JavaBean：User

l 在changgou4-pojo项目中添加User对象

![img](https://img-blog.csdnimg.cn/img_convert/7ae80b7958183f3857772a9121f9c6af.png)

package com.czxy.changgou4.pojo;import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableField;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import lombok.ToString;import java.beans.Transient;
import java.util.Date;/  与数据库对应JavaBean* Created by liangtong.*/
@TableName("tb_user")
@Data
@NoArgsConstructor
@AllArgsConstructor
public class User {/*CREATE TABLE `tb_user` (`id` int(10) unsigned NOT NULL AUTO_INCREMENT,`created_at` timestamp NULL DEFAULT NULL,`updated_at` timestamp NULL DEFAULT NULL,`email` varchar(255) COLLATE utf8_unicode_ci DEFAULT NULL COMMENT 'Email',`mobile` varchar(20) COLLATE utf8_unicode_ci NOT NULL COMMENT '手机号码',`username` varchar(255) COLLATE utf8_unicode_ci NOT NULL COMMENT '昵称',`password` char(60) COLLATE utf8_unicode_ci NOT NULL COMMENT '密码',`face` varchar(255) COLLATE utf8_unicode_ci DEFAULT NULL COMMENT '头像',`expriece` int(10) unsigned DEFAULT '0' COMMENT '经验值',PRIMARY KEY (`id`),UNIQUE KEY `users_mobile_unique` (`mobile`),UNIQUE KEY `users_name_unique` (`name`),UNIQUE KEY `users_email_unique` (`email`)) ENGINE=InnoDB AUTO_INCREMENT=27 DEFAULT CHARSET=utf8 COLLATE=utf8_unicode_ci*/@TableId(value="id",type = IdType.AUTO)private Long id;@TableField(value="username")private String username;@TableField(value="password")private String password;@TableField(value="face")private String face;@TableField(value="expriece")private Integer expriece;@TableField(value="email")private String email;@TableField(value="mobile")private String mobile;@TableField(value="created_at")private Date createdAt;@TableField(value="updated_at")private Date updatedAt;@TableField(exist = false)private String code;@TableField(exist = false)private String password_confirm;}

1.1.3 前端页面：创建公共组件

l 1）删除components目录下所有内容，并创建3个新组件

l 2）创建 TopNav.vue组件，用于配置“顶部导航”

<template><!-- 顶部导航 start --><div class="topnav"><div class="topnav_bd w990 bc"><div class="topnav_left"></div><div class="topnav_right fr"><ul><li>您好，欢迎来到畅购！[<a href="login.html">登录</a>] [<a href="register.html">免费注册</a>] </li><li class="line">|</li><li>我的订单</li><li class="line">|</li><li>客户服务</li></ul></div></div></div><!-- 顶部导航 end -->
</template><script>
export default {}
</script><style></style>

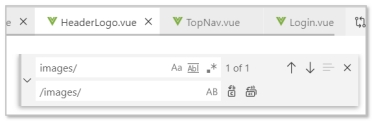

l 3）创建 HeaderLogo.vue组件，用于配置“页面头部，仅有LOGO”

![img](https://img-blog.csdnimg.cn/img_convert/1c9fd567ca240f85346fac57434ea42e.png)

<template><!-- 页面头部 start --><div class="header w990 bc mt15"><div class="logo w990"><h2 class="fl"><a href="index.html"><img src="/images/logo.png" alt="畅购商城"></a></h2></div></div><!-- 页面头部 end -->
</template><script>
export default {}
</script><style></style>

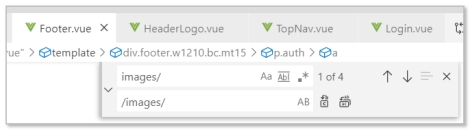

l 4）创建 Footer.vue组件，用于配置“底部版权”

![img](https://img-blog.csdnimg.cn/img_convert/203c6aca21fd8ce4461724dd6a5859ba.png)

<template><!-- 底部版权 start --><div class="footer w1210 bc mt15"><p class="links"><a href="">关于我们</a> |<a href="">联系我们</a> |<a href="">人才招聘</a> |<a href="">商家入驻</a> |<a href="">千寻网</a> |<a href="">奢侈品网</a> |<a href="">广告服务</a> |<a href="">移动终端</a> |<a href="">友情链接</a> |<a href="">销售联盟</a> |<a href="">畅购论坛</a></p><p class="copyright">© 2006-2020 畅购网上商城 版权所有，并保留所有权利。  ICP备案证书号:京ICP证070359号</p><p class="auth"><a href=""><img src="/images/xin.png" alt="" /></a><a href=""><img src="/images/kexin.jpg" alt="" /></a><a href=""><img src="/images/police.jpg" alt="" /></a><a href=""><img src="/images/beian.gif" alt="" /></a></p></div><!-- 底部版权 end -->
</template><script>
export default {}
</script><style></style>

1.2 用户注册：用户名占用

1.2.1 接口

http://localhost:10010/web-service/user/checkusername{"username":"jack1"}

1.2.2 后端

l 创建三层需要的接口或类

l 步骤一：创建UserMapper，编写findByUsername()完成“通过用户名查询用户”

package com.czxy.changgou4.mapper;import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.czxy.changgou4.pojo.User;
import org.apache.ibatis.annotations.Param;
import org.apache.ibatis.annotations.Select;/* Created by liangtong.*/
@org.apache.ibatis.annotations.Mapper
public interface UserMapper extends BaseMapper<User> {/* 通过用户名查询* @param username* @return*/@Select("select * from tb_user where username = #{username}")User findByUsername(@Param("username") String username);
}

l 步骤二：创建UserService接口，查询功能

package com.czxy.changgou4.service;import com.baomidou.mybatisplus.extension.service.IService;
import com.czxy.changgou4.pojo.User;/* @author * @email */
public interface UserService extends IService<User> {/* 通过用户名查询* @param username* @return*/public User findByUsername(String username);
}

l 步骤三：创建UserServiceImpl实现类，查询功能

package com.czxy.changgou4.service.impl;import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.czxy.changgou4.mapper.UserMapper;
import com.czxy.changgou4.pojo.User;
import com.czxy.changgou4.service.UserService;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;/* @author * @email */
@Service
@Transactional
public class UserServiceImpl extends ServiceImpl<UserMapper, User> implements UserService {@Overridepublic User findByUsername(String username) {return baseMapper.findByUsername(username);}
}

l 步骤四：创建UserController，完成用户名检查

package com.czxy.changgou4.controller;import com.czxy.changgou4.pojo.User;
import com.czxy.changgou4.service.UserService;
import com.czxy.changgou4.vo.BaseResult;
import org.springframework.web.bind.annotation.*;import javax.annotation.Resource;/* Created by liangtong.*/
@RestController
@RequestMapping("/user")
public class UserController {@Resourceprivate UserService userService;@PostMapping("/checkusername")public BaseResult checkUsername(@RequestBody User user){//查询用户User findUser = userService.findByUsername( user.getUsername() );//判断if(findUser != null){return BaseResult.error("用户名已经存在");} else {return BaseResult.ok("用户名可用");}}}

1.2.3 前端

l 步骤一：创建Register.vue

l 步骤二：添加公共组件

<template><div><TopNav></TopNav><div style="clear:both;"></div><HeaderLogo></HeaderLogo><div style="clear:both;"></div><!-- 正文 --><div style="clear:both;"></div><Footer></Footer></div>
</template><script>
import TopNav from '../components/TopNav'
import HeaderLogo from '../components/HeaderLogo'
import Footer from '../components/Footer'
export default {head: {title: '用户注册'},components : {TopNav,HeaderLogo,Footer}
}
</script><style></style>

l 步骤三：编写注册表单，并导入独有样式

<template><div><TopNav></TopNav><div style="clear:both;"></div><HeaderLogo></HeaderLogo><div style="clear:both;"></div><!-- 正文 --><!-- 登录主体部分start --><div class="login w990 bc mt10 regist"><div class="login_hd"><h2>用户注册</h2><b></b></div><div class="login_bd"><div class="login_form fl"><form action="" method="post"><ul><li><label for="">用户名：</label><input type="text" class="txt" name="username" /><p>3-20位字符，可由中文、字母、数字和下划线组成</p><p class="error">用户名已存在</p></li><li><label for="">密码：</label><input type="password" class="txt" name="password" /><p>6-20位字符，可使用字母、数字和符号的组合，不建议使用纯数字、纯字母、纯符号</p></li><li><label for="">确认密码：</label><input type="password" class="txt" name="password" /><p>请再次输入密码</p></li><li><label for="">手机号码：</label><input type="text" class="txt"  name="mobile" /><p>请输入手机号码</p></li><li class="checkcode"><label for="">验证码：</label><input type="text"  name="checkcode" /><button >发送验证码<span>5秒</span></button></li><li><label for="">&nbsp;</label><input type="checkbox" class="chb" checked="checked" /> 我已阅读并同意《用户注册协议》</li><li><label for="">&nbsp;</label><input type="submit" value="" class="login_btn" /></li></ul></form></div><div class="mobile fl"><h3>手机快速注册</h3><p>中国大陆手机用户，编辑短信 “<strong>XX</strong>”发送到：</p><p><strong>1069099988</strong></p></div></div></div><!-- 登录主体部分end --><div style="clear:both;"></div><Footer></Footer></div>
</template><script>
import TopNav from '../components/TopNav'
import HeaderLogo from '../components/HeaderLogo'
import Footer from '../components/Footer'
export default {head: {title: '用户注册',link: [{rel:'stylesheet',href:'style/login.css'}],script: [{ type: 'text/javascript', src: 'js/header.js' },{ type: 'text/javascript', src: 'js/index.js' },]},components : {TopNav,HeaderLogo,Footer}
}
</script><style></style>

l 步骤四：修改api.js，编写检查用户名的ajax函数

const request = {test : ()=> {return axios.get('/test')},//检查用户名checkUsername : ( username )=> {return axios.post('/web-service/user/checkusername', { username })}
}

l 步骤五：修改Register.vue页面，完成检查功能

n 发送ajax进行用户名是否可用检查

n 如果可用，显示对应信息，并使用success样式显示

n 如果不可用，显示对应信息，并使用error样式提示

<template><div><TopNav></TopNav><div style="clear:both;"></div><HeaderLogo></HeaderLogo><div style="clear:both;"></div><!-- 正文 --><!-- 登录主体部分start --><div class="login w990 bc mt10 regist"><div class="login_hd"><h2>用户注册</h2><b></b></div><div class="login_bd"><div class="login_form fl"><form action="" method="post"><ul><li><label for="">用户名：</label><input type="text" class="txt" name="username" v-model="user.username" @blur="checkUsernameFn" /><p>3-20位字符，可由中文、字母、数字和下划线组成</p><p :class="userMsg.usernameData.code == 1 ? 'success' : 'error'">{{userMsg.usernameData.message}} </p></li><li><label for="">密码：</label><input type="password" class="txt" name="password" /><p>6-20位字符，可使用字母、数字和符号的组合，不建议使用纯数字、纯字母、纯符号</p></li><li><label for="">确认密码：</label><input type="password" class="txt" name="password" /><p>请再次输入密码</p></li><li><label for="">手机号码：</label><input type="text" class="txt"  name="mobile" /><p>请输入手机号码</p></li><li class="checkcode"><label for="">验证码：</label><input type="text"  name="checkcode" /><button >发送验证码<span>5秒</span></button></li><li><label for="">&nbsp;</label><input type="checkbox" class="chb" checked="checked" /> 我已阅读并同意《用户注册协议》</li><li><label for="">&nbsp;</label><input type="submit" value="" class="login_btn" /></li></ul></form></div><div class="mobile fl"><h3>手机快速注册</h3><p>中国大陆手机用户，编辑短信 “<strong>XX</strong>”发送到：</p><p><strong>1069099988</strong></p></div></div></div><!-- 登录主体部分end --><div style="clear:both;"></div><Footer></Footer></div>
</template><script>
import TopNav from '../components/TopNav'
import HeaderLogo from '../components/HeaderLogo'
import Footer from '../components/Footer'
export default {head: {title: '用户注册',link: [{rel:'stylesheet',href:'style/login.css'}],script: [{ type: 'text/javascript', src: 'js/header.js' },{ type: 'text/javascript', src: 'js/index.js' },]},components : {TopNav,HeaderLogo,Footer},data() {return {user : {			//表单绑定对象username : ""},userMsg : {		//错误信息usernameData : ""}}},methods: {async checkUsernameFn() {let {data} = await this.$request.checkUsername( this.user.username )this.userMsg.usernameData = data}},
}
</script><style></style>

1.3 用户注册：手机号检查

1.3.1 接口

http://localhost:10010/web-service/user/checkmobile

{

"mobile":"13344445555"

}

1.3.2 后端

l 步骤一：修改UserService，添加 findByMobile() 方法，进行电话号码的查询

/* 通过手机号查询* @param mobile* @return*/
User findByMobile(String mobile);

l 步骤二：编写UserServiceImpl，实现findByMobile() 方法

@Override
public User findByMobile(String mobile) {// 拼凑条件QueryWrapper queryWrapper = new QueryWrapper();queryWrapper.eq("mobile", mobile);// 查询一个List<User> list = baseMapper.selectList(queryWrapper);if(list.size() == 1) {return list.get(0);}return null;
}

l 步骤三：修改UserController，添加checkMobile() 方法

/* 通过手机号查询* @param user* @return*/
@PostMapping("/checkmobile")
public BaseResult checkMobile(@RequestBody User user){//查询用户User findUser = userService.findByMobile( user.getMobile() );//判断if(findUser != null){return BaseResult.error("电话号码已经注册");} else {return BaseResult.ok("电话号码可用");}
}

1.3.3 前端

l 步骤一：修改api.js，添加 checkMobile() 函数

const request = {test : ()=> {return axios.get('/test')},//检查用户名checkUsername : ( username )=> {return axios.post('/web-service/user/checkusername', { username })},//检查电话号码checkMobile : ( mobile )=> {return axios.post('/web-service/user/checkmobile', { mobile })}
}

l 步骤二：修改Register.vue，添加 checkMobileFn() 进行手机号检查

  methods: {async checkUsernameFn() {//检查用户名let {data} = await this.$request.checkUsername( this.user.username )this.userMsg.usernameData = data},async checkMobileFn() {//检查电话let {data} = await this.$request.checkMobile( this.user.mobile )this.userMsg.mobileData = data}},

l 步骤三：编写需要的2个变量

  data() {return {user : {  //表单封装数据username : "",mobile : ""},userMsg : { //错误提示数据usernameData : "",mobileData : ""}}},

l 步骤四：处理页面

<li><label for="">手机号码：</label><input type="text" class="txt"  name="mobile"  v-model="user.mobile" @blur="checkMobileFn" /><p>请输入手机号码</p><p :class="userMsg.mobileData.code == 1 ? 'success' : 'error'">{{userMsg.mobileData.message}} </p></li>

l 完整版

<template><div><TopNav></TopNav><div style="clear:both;"></div><HeaderLogo></HeaderLogo><div style="clear:both;"></div><!-- 正文 --><!-- 登录主体部分start --><div class="login w990 bc mt10 regist"><div class="login_hd"><h2>用户注册</h2><b></b></div><div class="login_bd"><div class="login_form fl"><form action="" method="post"><ul><li><label for="">用户名：</label><input type="text" class="txt" name="username" v-model="user.username" @blur="checkUsernameFn" /><p>3-20位字符，可由中文、字母、数字和下划线组成</p><p :class="userMsg.usernameData.code == 1 ? 'success' : 'error'">{{userMsg.usernameData.message}} </p></li><li><label for="">密码：</label><input type="password" class="txt" name="password" /><p>6-20位字符，可使用字母、数字和符号的组合，不建议使用纯数字、纯字母、纯符号</p></li><li><label for="">确认密码：</label><input type="password" class="txt" name="password" /><p>请再次输入密码</p></li><li><label for="">手机号码：</label><input type="text" class="txt"  name="mobile"  v-model="user.mobile" @blur="checkMobileFn" /><p>请输入手机号码</p><p :class="userMsg.mobileData.code == 1 ? 'success' : 'error'">{{userMsg.mobileData.message}} </p></li><li class="checkcode"><label for="">验证码：</label><input type="text"  name="checkcode" /><button >发送验证码<span>5秒</span></button></li><li><label for="">&nbsp;</label><input type="checkbox" class="chb" checked="checked" /> 我已阅读并同意《用户注册协议》</li><li><label for="">&nbsp;</label><input type="submit" value="" class="login_btn" /></li></ul></form></div><div class="mobile fl"><h3>手机快速注册</h3><p>中国大陆手机用户，编辑短信 “<strong>XX</strong>”发送到：</p><p><strong>1069099988</strong></p></div></div></div><!-- 登录主体部分end --><div style="clear:both;"></div><Footer></Footer></div>
</template><script>
import TopNav from '../components/TopNav'
import HeaderLogo from '../components/HeaderLogo'
import Footer from '../components/Footer'
export default {head: {title: '用户注册',link: [{rel:'stylesheet',href:'style/login.css'}],script: [{ type: 'text/javascript', src: 'js/header.js' },{ type: 'text/javascript', src: 'js/index.js' },]},components : {TopNav,HeaderLogo,Footer},data() {return {user : {  //表单封装数据username : "",mobile : "",password : "",code : ""},userMsg : { //错误提示数据usernameData : "",mobileData : ""}}},methods: {async checkUsernameFn() {//检查用户名let {data} = await this.$request.checkUsername( this.user.username )this.userMsg.usernameData = data},async checkMobileFn() {//检查电话let {data} = await this.$request.checkMobile( this.user.mobile )this.userMsg.mobileData = data}},
}
</script><style></style>

1.4 用户注册：前置技术–Redis

1.5 用户注册：前置技术–阿里大鱼

1.6 用户注册：短信验证码

1.6.1 分析

1.6.2 接口

http://localhost:10010/web-service/sms

{

"mobile":"13344445555","username": "jack"

}

1.6.3 后端

l 创建 SmsController类，调用阿里大鱼工具类，发送短信。

package com.czxy.changgou4.controller;import com.aliyuncs.dysmsapi.model.v20170525.SendSmsResponse;
import com.czxy.changgou4.pojo.User;
import com.czxy.changgou4.utils.SmsUtil;
import com.czxy.changgou4.vo.BaseResult;
import org.apache.commons.lang.RandomStringUtils;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;import javax.annotation.Resource;
import java.util.concurrent.TimeUnit;/* Created by liangtong.*/
@RestController
@RequestMapping("/sms")
public class SmsController {@Resourceprivate StringRedisTemplate redisTemplate;@PostMappingpublic BaseResult sendSms(@RequestBody User user){long start = System.currentTimeMillis();try {//发送短信//1 生产验证码String code = RandomStringUtils.randomNumeric(4);System.out.println("验证码：" + code);//2 并存放到reids中 , key: "sms_register" + 手机号 ， value：验证码 , 1小时redisTemplate.opsForValue().set( "sms_register" + user.getMobile() , code , 1 , TimeUnit.HOURS);////3 发送短信SendSmsResponse smsResponse = SmsUtil.sendSms(user.getMobile(), user.getUsername() , code, "", "");//https://help.aliyun.com/document_detail/55284.html?spm=5176.doc55322.6.557.KvvIJxif("OK".equalsIgnoreCase(smsResponse.getCode())){return BaseResult.ok("发送成功");} else {return BaseResult.error(smsResponse.getMessage());}/*//模拟数据System.out.println("验证码：" + code);return BaseResult.ok("发送成功");*/} catch (Exception e) {long end = System.currentTimeMillis();System.out.println( end - start);return BaseResult.error("发送失败" );}}
}

1.6.4 前端

l 步骤一：修改apiclient.js，发送短信ajax操作

  //发短信sendSms : ( user )=> {return axios.post('/web-service/sms', user )}

l 步骤二：修改Register.vue页面，给“发送验证码”绑定点击事件 sendSmsFn

<button  @click.prevent="sendSmsFn" >发送验证码<span>5秒</span></button>

l 步骤三：修改Register.vue页面，编写sendSmsFn函数，建议采用 ajax…then()…catch 可以处理异常

sendSmsFn () {this.$request.sendSms( this.user ).then(( response )=>{//发送短信的提示信息this.userMsg.smsData = response.data}).catch(( error )=>{//错误提示信息alert( error.message )})}

l 步骤四：修改Register.vue页面，提供变量smsData

userMsg : { //错误提示数据usernameData : "",mobileData : "",smsData : ""}

l 步骤五：修改Register.vue页面，显示 smsData提示信息

<p :class="userMsg.smsData.code == 1 ? 'success' : 'error'">{{userMsg.smsData.message}} </p>

1.6.5 倒计时

l 步骤一：提供3个变量，用于控制倒计时

      btnDisabled : false,  //倒计时控制变量seconds : 5,           //默认倒计时秒数timer : null,         //接收定时器，清除定时器

l 步骤二：在标签上面控制倒计时的显示

<button :disabled="btnDisabled" @click.prevent="sendSmsFn" >发送验证码<span v-show="btnDisabled">{{seconds}}秒</span>
</button>

l 步骤三：发送短信后，开启倒计时控制

sendSmsFn () {this.$request.sendSms( this.user ).then(( response )=>{//发送短信的提示信息this.userMsg.smsData = response.data//按钮不可用this.btnDisabled = true;//倒计时this.timer = setInterval( ()=>{if(this.seconds <= 1){//结束// 重置秒数this.seconds = 5;// 按钮可用this.btnDisabled = false;// 停止定时器clearInterval(this.timer);} else {this.seconds --;}} , 1000);}).catch(( error )=>{//错误提示信息alert( error.message )})}

1.7 用户注册

1.7.1 接口

http://localhost:10010/web-service/user/register

{

"mobile":"13612345677","password":"1234","username":"jack3","code":"3919"

}

1.7.2 后端

l 保存前需要再次进行服务端校验

n 用户名是否注册

n 手机号是否注册

n 验证码是否失效

n 验证码是否错误

l 密码需要使用 BCrypt进行加密

l 步骤一：修改UserService接口，添加register方法

/* 用户注册* @param user* @return*/
public boolean register(User user) ;

l 步骤二：完善UserServiceImpl实现类

@Override
public boolean register(User user) {//密码加密String newPassword = BCrypt.hashpw(user.getPassword());user.setPassword(newPassword);//处理数据user.setCreatedAt(new Date());user.setUpdatedAt(user.getCreatedAt());int insert = baseMapper.insert(user);return insert == 1;
}

l 步骤三：修改UserController，添加register方法

/* 用户注册* @param user* @return*/
@PostMapping("/register")
public BaseResult  register(@RequestBody User user){//服务端校验User findUser = userService.findByUsername(user.getUsername());if(findUser != null) {return BaseResult.error("用户名已经存在");}findUser = userService.findByMobile(user.getMobile());if(findUser != null) {return BaseResult.error("电话号码已经存在");}//验证码String code = stringRedisTemplate.opsForValue().get("sms_register" + user.getMobile());//删除redis中的验证码stringRedisTemplate.delete("sms_register" + user.getMobile());if(code == null) {return BaseResult.error("验证码失效");}if(!code.equals(user.getCode())) {return BaseResult.error("验证码不正确");}//注册boolean register = userService.register(user);if(register) {return BaseResult.ok("注册成功");}return BaseResult.error("注册失败");
}

1.7.3 日期处理（可选）

l 编写 DateMetaObjectHandler 用于处理“创建时间”和“修改日期”

package com.czxy.changgou4.handler;import com.baomidou.mybatisplus.core.handlers.MetaObjectHandler;
import org.apache.ibatis.reflection.MetaObject;
import org.springframework.stereotype.Component;import java.util.Date;/* @author * @email */
@Component
public class DateMetaObjectHandler implements MetaObjectHandler {@Overridepublic void insertFill(MetaObject metaObject) {this.setFieldValByName("createdAt", new Date(), metaObject);this.setFieldValByName("updatedAt", new Date(), metaObject);}@Overridepublic void updateFill(MetaObject metaObject) {this.setFieldValByName("updatedAt", new Date(), metaObject);}
}

l 完善User JavaBean，设置填充方式

@TableField(value="created_at",fill = FieldFill.INSERT)
private Date createdAt;@TableField(value="updated_at",fill = FieldFill.INSERT_UPDATE)
private Date updatedAt;

1.7.4 前端

l 步骤一：修改 api.js ，添加注册函数

   //注册register : ( user )=> {return axios.post('/web-service/user/register', user )}

l 步骤二：处理表单，验证码input绑定数据，提交按钮绑定事件

   <li class="checkcode"><label for="">验证码：</label><input type="text"  name="checkcode"  v-model="user.code" /><button  :disabled="btnDisabled" @click.prevent="sendSmsFn" >发送验证码<span v-show="btnDisabled">{{seconds}}秒</span></button><p :class="userMsg.smsData.code == 1 ? 'success' : 'error'">{{userMsg.smsData.message}} </p></li><li><label for="">&nbsp;</label><input type="checkbox" class="chb" checked="checked" /> 我已阅读并同意《用户注册协议》</li><li><label for="">&nbsp;</label><input type="submit" value="" @click.prevent="registerFn" class="login_btn" /></li>

l 步骤三：完善data区域的user数据

     user : {  //表单封装数据username : "",          //用户名mobile : "13699282444", //手机号password : "",          //密码code : ""               //验证码},

l 步骤四：编写registerFn函数

   async registerFn() {let { data } = await this.$request.register( this.user )if( data.code == 20000) {//成功this.$router.push('/login')} else {//失败--与发送验证码使用一个位置显示错误信息this.userMsg.smsData = data}}

1.8 用户登录

1.8.1 构建页面：Login.vue

l 步骤一：创建Login.vue

l 步骤二：绘制通用模块

<template><div><TopNav></TopNav><div style="clear:both;"></div><HeaderLogo></HeaderLogo><div style="clear:both;"></div><!-- 正文 --><div style="clear:both;"></div><Footer></Footer></div>
</template><script>
import TopNav from '../components/TopNav'
import HeaderLogo from '../components/HeaderLogo'
import Footer from '../components/Footer'
export default {head: {title: '用户登录',link: [{rel:'stylesheet',href:'style/login.css'}],script: []},components : {TopNav,HeaderLogo,Footer},}
</script><style></style>

l 步骤三：绘制登录表单

<template><div><TopNav></TopNav><div style="clear:both;"></div><HeaderLogo></HeaderLogo><div style="clear:both;"></div><!-- 正文 --><!-- 登录主体部分start --><div class="login w990 bc mt10"><div class="login_hd"><h2>用户登录</h2><b></b></div><div class="login_bd"><div class="login_form fl"><form action="" method="post"><ul><li><label for="">用户名：</label><input type="text" class="txt" name="username" /></li><li><label for="">密码：</label><input type="password" class="txt" name="password" /><a href="">忘记密码?</a></li><li class="checkcode"><label for="">验证码：</label><input type="text"  name="checkcode" /><img src="images/checkcode1.jpg" alt="" /><span>看不清？<a href="">换一张</a></span></li><li><label for="">&nbsp;</label><input type="checkbox" class="chb"  /> 保存登录信息</li><li><label for="">&nbsp;</label><input type="submit" value="" class="login_btn" /></li></ul></form><div class="coagent mt15"><dl><dt>使用合作网站登录商城：</dt><dd class="qq"><a href=""><span></span>QQ</a></dd><dd class="weibo"><a href=""><span></span>新浪微博</a></dd><dd class="yi"><a href=""><span></span>网易</a></dd><dd class="renren"><a href=""><span></span>人人</a></dd><dd class="qihu"><a href=""><span></span>奇虎360</a></dd><dd class=""><a href=""><span></span>百度</a></dd><dd class="douban"><a href=""><span></span>豆瓣</a></dd></dl></div></div><div class="guide fl"><h3>还不是商城用户</h3><p>现在免费注册成为商城用户，便能立刻享受便宜又放心的购物乐趣，心动不如行动，赶紧加入吧!</p><a href="regist.html" class="reg_btn">免费注册 >></a></div></div></div><!-- 登录主体部分end --><div style="clear:both;"></div><Footer></Footer></div>
</template><script>
import TopNav from '../components/TopNav'
import HeaderLogo from '../components/HeaderLogo'
import Footer from '../components/Footer'
export default {head: {title: '用户登录',link: [{rel:'stylesheet',href:'style/login.css'}],script: []},components : {TopNav,HeaderLogo,Footer},}
</script><style></style>

1.8.2 分析

1.8.3 验证码：接口

http://localhost:10010/web-service/verifycode?username=jack

1.8.4 验证码：生成与显示

l 步骤一：后端生产验证码，并将用户保存Redis

n 存放redis中验证码key格式：“login” + 用户名

package com.czxy.changgou4.controller;import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;import javax.annotation.Resource;
import javax.imageio.ImageIO;
import javax.servlet.http.HttpServletResponse;
import java.awt.*;
import java.awt.image.BufferedImage;
import java.io.IOException;
import java.util.Random;
import java.util.concurrent.TimeUnit;/* @author * @email */
@Controller
@RequestMapping("/verifycode")
public class VerifyCodeController {@Resourceprivate StringRedisTemplate stringRedisTemplate;@GetMappingpublic void verifyCode(String username , HttpServletResponse response ) throws IOException {//字体只显示大写，去掉了1,0,i,o几个容易混淆的字符String VERIFY_CODES = "23456789ABCDEFGHJKLMNPQRSTUVWXYZ";int IMG_WIDTH = 72;int IMG_HEIGTH = 27;Random random = new Random();//创建图片BufferedImage image = new BufferedImage(IMG_WIDTH, IMG_HEIGTH, BufferedImage.TYPE_INT_RGB);//画板Graphics g = image.getGraphics();//填充背景g.setColor(Color.WHITE);g.fillRect(1,1,IMG_WIDTH-2,IMG_HEIGTH-2);g.setFont(new Font("楷体", Font.BOLD,25));StringBuilder sb = new StringBuilder();//写字for(int i = 1 ; i <= 4 ; i ++){//随机颜色g.setColor(new Color(random.nextInt(255),random.nextInt(255),random.nextInt(255)));int len = random.nextInt(VERIFY_CODES.length());String str = VERIFY_CODES.substring(len,len+1);sb.append(str);g.drawString(str, IMG_WIDTH / 6 * i , 22 );}//将验证码存放到redisstringRedisTemplate.opsForValue().set( "login" + username , sb.toString() , 1 , TimeUnit.HOURS);// 生成随机干扰线for (int i = 0; i < 30; i++) {//随机颜色g.setColor(new Color(random.nextInt(255),random.nextInt(255),random.nextInt(255)));int x = random.nextInt(IMG_WIDTH - 1);int y = random.nextInt(IMG_HEIGTH - 1);int x1 = random.nextInt(12) + 1;int y1 = random.nextInt(6) + 1;g.drawLine(x, y, x - x1, y - y1);}//响应到浏览器ImageIO.write(image,"jpeg", response.getOutputStream());}
}

l 步骤二：点击“换一张”显示验证码

n 默认不显示验证码

n 点击“换一张”获得验证码

<template><div><TopNav></TopNav><div style="clear:both;"></div><HeaderLogo></HeaderLogo><div style="clear:both;"></div><!-- 正文 --><!-- 登录主体部分start --><div class="login w990 bc mt10"><div class="login_hd"><h2>用户登录</h2><b></b></div><div class="login_bd"><div class="login_form fl"><form action="" method="post"><ul><li><label for="">用户名：</label><input type="text" class="txt" name="username" v-model="user.username" /></li><li><label for="">密码：</label><input type="password" class="txt" name="password" v-model="user.password" /><a href="">忘记密码?</a></li><li class="checkcode"><label for="">验证码：</label><input type="text"  name="checkcode" /><!-- <img src="images/checkcode1.jpg" alt="" /> --><img :src="imgSrc" alt="" /><span>看不清？<a href="" @click.prevent="changeVerifyCode">换一张</a></span></li><li v-if="errorMsg != ''"><label for="">&nbsp;</label><span style="color: #ff5b5b">{{errorMsg}}</span></li><li><label for="">&nbsp;</label><input type="checkbox" class="chb"  /> 保存登录信息</li><li><label for="">&nbsp;</label><input type="submit" value="" class="login_btn" /></li></ul></form><div class="coagent mt15"><dl><dt>使用合作网站登录商城：</dt><dd class="qq"><a href=""><span></span>QQ</a></dd><dd class="weibo"><a href=""><span></span>新浪微博</a></dd><dd class="yi"><a href=""><span></span>网易</a></dd><dd class="renren"><a href=""><span></span>人人</a></dd><dd class="qihu"><a href=""><span></span>奇虎360</a></dd><dd class=""><a href=""><span></span>百度</a></dd><dd class="douban"><a href=""><span></span>豆瓣</a></dd></dl></div></div><div class="guide fl"><h3>还不是商城用户</h3><p>现在免费注册成为商城用户，便能立刻享受便宜又放心的购物乐趣，心动不如行动，赶紧加入吧!</p><a href="regist.html" class="reg_btn">免费注册 >></a></div></div></div><!-- 登录主体部分end --><div style="clear:both;"></div><Footer></Footer></div>
</template><script>
import TopNav from '../components/TopNav'
import HeaderLogo from '../components/HeaderLogo'
import Footer from '../components/Footer'
export default {head: {title: '用户登录',link: [{rel:'stylesheet',href:'style/login.css'}],script: []},components : {TopNav,HeaderLogo,Footer},data() {return {imgSrc:'',errorMsg: '',user: {}}},methods: {changeVerifyCode() {if( this.user.username ) {this.imgSrc = `http://localhost:10010/web-service/verifycode?t=${new Date().getTime()}&username=${this.user.username }`} else {this.errorMsg = '用户名不能为空'}}},watch: {'user' : {handler(v) {if(v) {//如果user数据发生改变，修改提示信息this.errorMsg = ''}},deep: true}},}
</script><style></style>

1.8.5 通过用户名查询：接口

http://localhost:10010/web-service/user/findByUsername
{"username":"jack"
}

1.8.6 通过用户名查询：实现

l 修改UserController，添加 findByUsername函数

/* 通过用户名查询* @param user* @return 返回用户对象*/
@PostMapping("/findByUsername")
public User findByUsername(@RequestBody User user){//查询用户User findUser = userService.findByUsername( user.getUsername() );return findUser;
}

1.8.7 认证服务：构建项目（changgou4-service-auth）

l 步骤一：构建项目

l 步骤二：创建pom.xml文件

<dependencies><!--自定义项目--><dependency><groupId>com.czxy.changgou</groupId><artifactId>changgou4_common_auth</artifactId></dependency><!--web起步依赖--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><!-- nacos 客户端 --><dependency><groupId>com.alibaba.nacos</groupId><artifactId>nacos-client</artifactId></dependency><!-- nacos 服务发现 --><dependency><groupId>com.alibaba.cloud</groupId><artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId></dependency><!--redis--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-data-redis</artifactId></dependency><dependency><groupId>redis.clients</groupId><artifactId>jedis</artifactId></dependency><!--swagger2--><dependency><groupId>io.springfox</groupId><artifactId>springfox-swagger2</artifactId></dependency><dependency><groupId>io.springfox</groupId><artifactId>springfox-swagger-ui</artifactId></dependency>
</dependencies>

l 步骤三：创建yml文件

server:port: 8085
spring:application:name: auth-servicecloud:nacos:discovery:server-addr: 127.0.0.1:8848   #nacos服务地址sc:jwt:secret: sc@Login(Auth}*^31)&czxy% # 登录校验的密钥pubKeyPath: D:/rsa/rsa.pub # 公钥地址priKeyPath: D:/rsa/rsa.pri # 私钥地址expire: 360 # 过期时间,单位分钟

l 步骤四：配置启动类

package com.czxy.changgou4;import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.openfeign.EnableFeignClients;/* @author * @email */
@SpringBootApplication
@EnableDiscoveryClient
@EnableFeignClients
public class CGAuthServiceApplication {public static void main(String[] args) {SpringApplication.run(CGAuthServiceApplication.class, args);}
}

l 步骤五：配置类

1.8.8 认证服务：用户登录后端

l 步骤一：创建AuthUser 封装对象（与User比较，缺数据库相关注解）

package com.czxy.changgou4.domain;import lombok.Data;import java.util.Date;/* @author * @email */
@Data
public class AuthUser {private Long id;private String username;private String password;private String face;private Integer expriece;private String email;private String mobile;private Date createdAt;private Date updatedAt;private String code;private String password_confirm;
}

l 步骤二：创建UserFeign，完成远程用户查询功能

package com.czxy.changgou4.feign;import com.czxy.changgou4.domain.AuthUser;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;/* @author * @email */
@FeignClient(value = "web-service",path="/user")
public interface UserFeign {@PostMapping("/findByUsername")public AuthUser findByUsername(@RequestBody AuthUser user);}

l 步骤三：创建AuthService接口，编写登录方法 login()

package com.czxy.changgou4.service;import com.czxy.changgou4.domain.AuthUser;/* @author * @email */
public interface AuthService {/* 用户登录* @param user* @return*/public AuthUser login(AuthUser user ) ;
}

l 步骤四：创建AuthService实现类，并通过BCrypt校验密码

package com.czxy.changgou4.service.impl;import com.czxy.changgou4.domain.AuthUser;
import com.czxy.changgou4.feign.UserFeign;
import com.czxy.changgou4.service.AuthService;
import com.czxy.changgou4.utils.BCrypt;
import org.springframework.stereotype.Service;import javax.annotation.Resource;/* @author * @email */
@Service
public class AuthServiceImpl implements AuthService {@Resourceprivate UserFeign userFeign;/* 用户登录* @param user* @return*/public AuthUser login(AuthUser user ) {//远程查询用户AuthUser findUser = userFeign.findByUsername(user);if(findUser == null) {return null;}//校验密码是否正确boolean checkpw = BCrypt.checkpw( user.getPassword(), findUser.getPassword());if(checkpw){return findUser;}return null;}}

l 步骤五：创建AuthController，添加login方法

n redis中登录验证码和用户输入的验证码进行匹配

package com.czxy.changgou4.controller;/* @author * @email */import com.czxy.changgou4.domain.AuthUser;
import com.czxy.changgou4.service.AuthService;
import com.czxy.changgou4.vo.BaseResult;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;import javax.annotation.Resource;/* Created by liangtong.*/
@RestController
@RequestMapping("/auth")
public class AuthController {@Resourceprivate AuthService authService;@Resourceprivate StringRedisTemplate stringRedisTemplate;@PostMapping("/login")public BaseResult login(@RequestBody AuthUser user){//校验验证码--使用后删除String redisCode = stringRedisTemplate.opsForValue().get( "login" + user.getUsername() );stringRedisTemplate.delete( "login" + user.getUsername() );if(redisCode == null) {return BaseResult.error("验证码无效");}if(! redisCode.equalsIgnoreCase(user.getCode())) {return BaseResult.error("验证码错误");}//登录AuthUser loginUser = authService.login(user);if(loginUser != null ) {return BaseResult.ok("登录成功").append("loginUser",loginUser);} else {return BaseResult.error("用户名或密码不匹配");}}
}

1.8.9 认证服务：用户登录前端

l 步骤一：修改apiclient.js，添加login函数

//登录

  //登录login : ( user )=> {return axios.post('/auth-service/auth/login', user )}

l 步骤二：修改Login.vue，给验证码绑定变量

<li class="checkcode"><label for="">验证码：</label><input type="text"  name="checkcode" v-model="user.code" /><!-- <img src="images/checkcode1.jpg" alt="" /> -->

l 步骤三：修改Login.vue，给提交按钮绑定事件

<li><label for="">&nbsp;</label><input type="submit" value="" @click.prevent="loginFn" class="login_btn" /></li>

l 步骤四：编写loginFn完成登录功能

n 登录成功，跳转到首页

n 登录失败，给出提示

    async loginFn() {let { data } = await this.$request.login( this.user )if( data.code == 20000) {//成功sessionStorage.setItem('user' , JSON.stringify(data.other.loginUser) )//跳转到首页this.$router.push('/')} else {this.errorMsg = data.message}}

l 步骤五：创建首页 ~/pages/index.vue，

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-TkXlK1om-1641474467247)(C:\Users\ADMINI~1\AppData\Local\Temp\ksohtml\wps2061.tmp.jpg)]

<template><div><TopNav></TopNav></div>
</template><script>
import TopNav from '../components/TopNav'export default {head: {title: '首页',link: [{rel:'stylesheet',href:'style/index.css'},{rel:'stylesheet',href:'style/bottomnav.css'}],script: [{ type: 'text/javascript', src: 'js/header.js' },{ type: 'text/javascript', src: 'js/index.js' },]},components : {TopNav,},
}
</script><style></style>

l 步骤六：重命名静态页面 ~/static/index.html 为 ~/static/home.html

1.8.10 修改 TopNav.vue 组件

l 完善导航条，根据vuex中的数据，显示不同内容

![img](https://img-blog.csdnimg.cn/img_convert/6e43cd03da6fa0bb28cc91542de892a9.png)![img](https://img-blog.csdnimg.cn/img_convert/770236d68dc0bae4dc45e8e381e28b11.png)

l 步骤一：创建 ~/store/index.js ，并编写vuex内容

![img](https://img-blog.csdnimg.cn/img_convert/6b18ca10a56849ad84777ad61cb30e5f.png)

export const state = () => ({user: null
})//通用设置
export const mutations = {setData( state , obj) {state[obj.key] = obj.value}
}

l 步骤二：页面登录成功，将用户信息保存到vuex中

// 将用户信息保存到vuex中
this.$store.commit('setData', {key:'user',value: data.data })

l 步骤三：修改顶部导航TopNav.vue

n 从vuex中的数据

<template><!-- 顶部导航 start --><div class="topnav"><div class="topnav_bd w990 bc"><div class="topnav_left"></div><div class="topnav_right fr"><ul><li v-if="user != null">您好，{{user.username}} 欢迎来到畅购！ <a href="" @click.prevent="logout">退出</a></li><li v-if="user != null" class="line">|</li><li v-if="user == null">[<a href="/login">登录</a>] [<a href="/register">免费注册</a>] </li><li v-if="user == null" class="line">|</li><li v-if="user != null">我的订单</li><li v-if="user != null" class="line">|</li><li>客户服务</li></ul></div></div></div><!-- 顶部导航 end -->
</template><script>
import {mapState,mapMutations} from 'vuex'
export default {mounted() {let userStr = sessionStorage.getItem('user')if(userStr){// 将string数据转换object，并填充到vuex中this.setData({key:'user',value: JSON.parse(userStr)})}},methods: {logout() {sessionStorage.removeItem('user')sessionStorage.removeItem('token')//设置vuex中的数据为空this.setData({key:'user',value: null })this.$router.push('/login')},...mapMutations(['setData'])},computed: {...mapState(['user'])},
}
</script><style></style>

1.8.11 vuex刷新数据丢失

l 刷新操作：

n 点击刷新按钮

n 点击回退按钮

n 地址栏直接输入地址

l 现象：

n vuex在刷新操作后，数据丢失了

l 解决方案

n 方案1：不是公共组件：页面在pages目录下，可以nuxt.js提供 fetch进行操作。

n 方案2：是公共组件：组件在components目录下，借助第三方进行存储（cookie、localStorage、sessionStorage）

l 具体操作：

n 如果vuex中没有数据，使用sessionStorage的数据填充vuex。

n 修改TopNav.vue页面

<template><!-- 顶部导航 start --><div class="topnav"><div class="topnav_bd w990 bc"><div class="topnav_left"></div><div class="topnav_right fr"><ul><li v-if="user!=null">您好，{{user.username}}欢迎来到畅购！</li><li v-if="user==null">[<nuxt-link to="/Login">登录</nuxt-link>]</li><li v-if="user==null">[<nuxt-link to="/Register">免费注册</nuxt-link>]</li><li v-if="user!=null">[<nuxt-link to="/Login">退出</nuxt-link>]</li><li v-if="user!=null" class="line">|</li><li v-if="user!=null">我的订单</li><li class="line">|</li><li>客户服务</li></ul></div></div></div><!-- 顶部导航 end -->
</template><script>
import {mapState, mapMutations} from 'vuex'
export default {computed: { //计算属性整合vuex// user() {//   return this.$store.state.user// }...mapState(['user'])},mounted() {// 从sessionStorage获得信息，如果存在，直接添加vuex中let userStr = sessionStorage.getItem('user')if(userStr) {let user = JSON.parse(userStr)//将数据存放到vuex中this.setData({key:'user',value: user })}},methods: {...mapMutations(['setData']),},
}
</script><style></style>

1.9 整合JWT

l 生成token：在用户登录成功，根据用户的登录信息，生成登录标识token，并返回给浏览器。

l 使用token：完善ajax请求，在请求之前添加请求头，设置token

l 校验token：在网关中编写过滤器，进行请求进行拦截，并校验token。

l 白名单：在白名单中的请求，是不需要token可以直接访问的。

1.9.1 生成Token

l 用户登录成功，生成token，并将token响应给浏览器。（认证服务 AuthService）

l 步骤一：查看 application.yml文件，确定 jwt配置信息

l 步骤二：创建JwtProperties文件，用于加载sc.jwt配置信息

package com.czxy.changgou4.config;import com.czxy.changgou4.utils.RsaUtils;
import lombok.Data;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;import javax.annotation.PostConstruct;
import java.io.File;
import java.security.PrivateKey;
import java.security.PublicKey;/* @author * @email */
@Data
@ConfigurationProperties(prefix = "sc.jwt")
@Component
public class JwtProperties {private String secret; // 密钥private String pubKeyPath;// 公钥private String priKeyPath;// 私钥private int expire;// token过期时间private PublicKey publicKey; // 公钥private PrivateKey privateKey; // 私钥private static final Logger logger = LoggerFactory.getLogger(JwtProperties.class);@PostConstructpublic void init(){try {File pubFile = new File(this.pubKeyPath);File priFile = new File(this.priKeyPath);if( !pubFile.exists() || !priFile.exists()){RsaUtils.generateKey( this.pubKeyPath ,this.priKeyPath , this.secret);}this.publicKey = RsaUtils.getPublicKey( this.pubKeyPath );this.privateKey = RsaUtils.getPrivateKey( this.priKeyPath );} catch (Exception e) {throw new RuntimeException(e.getMessage());}}}

l 步骤三：修改AuthController，注入JwtProperties，并使用JwtUtils生成token

package com.czxy.changgou4.controller;/* @author * @email */import com.czxy.changgou4.config.JwtProperties;
import com.czxy.changgou4.domain.AuthUser;
import com.czxy.changgou4.service.AuthService;
import com.czxy.changgou4.utils.JwtUtils;
import com.czxy.changgou4.vo.BaseResult;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;import javax.annotation.Resource;/* Created by liangtong.*/
@RestController
@RequestMapping("/auth")
public class AuthController {@Resourceprivate AuthService authService;@Resourceprivate StringRedisTemplate stringRedisTemplate;@Resourceprivate JwtProperties jwtProperties;@PostMapping("/login")public BaseResult login(@RequestBody AuthUser user){//校验验证码--使用后删除String redisCode = stringRedisTemplate.opsForValue().get( "login" + user.getUsername() );stringRedisTemplate.delete( "login" + user.getUsername() );if(redisCode == null) {return BaseResult.error("验证码无效");}if(! redisCode.equalsIgnoreCase(user.getCode())) {return BaseResult.error("验证码错误");}//登录AuthUser loginUser = authService.login(user);if(loginUser != null ) {//生成TokenString token = JwtUtils.generateToken(loginUser, jwtProperties.getExpire(), jwtProperties.getPrivateKey());return BaseResult.ok("登录成功").append("loginUser",loginUser).append("token", token);} else {return BaseResult.error("用户名或密码不匹配");}}
}

1.9.2 使用token

l 步骤一：登录成功后保存token，修改 Login.vue页面

  async loginFn() {let { data } = await this.$request.login( this.user )if( data.code == 20000) {//成功sessionStorage.setItem('user' , JSON.stringify(data.other.loginUser) )//保存tokensessionStorage.setItem('token' , data.other.token )//跳转到首页this.$router.push('/')} else {this.errorMsg = data.message}}

l 步骤二：请求是自动携带token，修改apiclient.js，将token添加到请求头

  //参考 https://axios.nuxtjs.org/helperslet token = sessionStorage.getItem('token')if( token ) {// Adds header: `Authorization: 123` to all requests// this.$axios.setToken('123')$axios.setToken( token )}

l 步骤三：检查 nuxt.conf.js，插件模式改成“client”

n 否则抛异常“sessionStorage is not defined”

  plugins: [{ src: '~plugins/apiclient.js', mode: 'client' }],

1.9.3 校验token

l token的校验在网关项目处完成

l 步骤一：修改application.yml添加jwt配置

#自定义内容
sc:jwt:secret: sc@Login(Auth}*^31)&czxy% # 登录校验的密钥pubKeyPath: D:/rsa/rsa.pub # 公钥地址priKeyPath: D:/rsa/rsa.pri # 私钥地址expire: 360 # 过期时间,单位分钟

l 步骤二：创建 JwtProperties，用于加载配置文件

![img](https://img-blog.csdnimg.cn/img_convert/49c42c373141ea478f5c9b7fd920e26d.png)

package com.czxy.changgou4.config;import com.czxy.changgou4.utils.RsaUtils;
import lombok.Data;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;import javax.annotation.PostConstruct;
import java.io.File;
import java.security.PrivateKey;
import java.security.PublicKey;/* @author * @email */
@Data
@ConfigurationProperties(prefix = "sc.jwt")
public class JwtProperties {private String secret; // 密钥private String pubKeyPath;// 公钥private String priKeyPath;// 私钥private int expire;// token过期时间private PublicKey publicKey; // 公钥private PrivateKey privateKey; // 私钥private static final Logger logger = LoggerFactory.getLogger(JwtProperties.class);@PostConstructpublic void init(){try {File pubFile = new File(this.pubKeyPath);File priFile = new File(this.priKeyPath);if( !pubFile.exists() || !priFile.exists()){RsaUtils.generateKey( this.pubKeyPath ,this.priKeyPath , this.secret);}this.publicKey = RsaUtils.getPublicKey( this.pubKeyPath );this.privateKey = RsaUtils.getPrivateKey( this.priKeyPath );} catch (Exception e) {throw new RuntimeException(e.getMessage());}}}

l 步骤三：编写过滤器，对所有路径进行拦截

package com.czxy.changgou4.filter;import com.czxy.changgou4.config.FilterProperties;
import com.czxy.changgou4.config.JwtProperties;
import com.czxy.changgou4.pojo.User;
import com.czxy.changgou4.utils.JwtUtils;
import com.czxy.changgou4.utils.RsaUtils;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.cloud.gateway.filter.GatewayFilterChain;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.core.Ordered;
import org.springframework.core.io.buffer.DataBuffer;
import org.springframework.http.HttpStatus;
import org.springframework.http.server.reactive.ServerHttpRequest;
import org.springframework.http.server.reactive.ServerHttpResponse;
import org.springframework.stereotype.Component;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;import javax.annotation.Resource;
import java.nio.charset.StandardCharsets;/* @author * @email */
@Component
public class LoginFilter implements GlobalFilter, Ordered {@Resourceprivate JwtProperties jwtProperties;@Overridepublic Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {//1 获得请求路径ServerHttpRequest request = exchange.getRequest();String path = request.getURI().getPath();System.out.println(path);//2 白名单放行//3 获得tokenString token = request.getHeaders().getFirst("Authorization");//4 校验tokentry {JwtUtils.getObjectFromToken(token, RsaUtils.getPublicKey(jwtProperties.getPubKeyPath()), User.class);return chain.filter(exchange);} catch (Exception e) {ServerHttpResponse response = exchange.getResponse();response.setStatusCode(HttpStatus.UNAUTHORIZED);response.getHeaders().add("Content-Type","application/json;charset=UTF-8");DataBuffer wrap = response.bufferFactory().wrap("没有权限".getBytes(StandardCharsets.UTF_8));return exchange.getResponse().writeWith(Flux.just(wrap));}}@Overridepublic int getOrder() {return 1;}
}

l 步骤四：修改前端 apiclient.js 文件，用于处理401异常

 //处理响应异常$axios.onError(error => {// token失效，服务器响应401if(error.response.status === 401) {console.error(error.response.data)redirect('/login')}})

l api.js 完整代码

var axios = null
export default ({ $axios, redirect, process }, inject) => {//参考 https://axios.nuxtjs.org/helperslet token = sessionStorage.getItem('token')if( token ) {// Adds header: `Authorization: 123` to all requests// this.$axios.setToken('123')$axios.setToken( token )}//处理响应异常$axios.onError(error => {// token失效，服务器响应401if(error.response.status === 401) {console.error(error.response.data)redirect('/login')}})//赋值axios = $axios//4) 将自定义函数交于nuxt// 使用方式1：在vue中，this.$request.xxx()// 使用方式2：在nuxt的asyncData中，content.app.$request.xxx()inject('request', request)
}

1.9.4 白名单

l 不需要拦截的资源都配置到yml文件中，在过滤器直接放行

l 步骤一：修改application.yml文件

![img](https://img-blog.csdnimg.cn/img_convert/f1c8d3621336acef6bf6c88da44d8366.png)

#自定义内容
sc:jwt:secret: sc@Login(Auth}*^31)&czxy% # 登录校验的密钥pubKeyPath: D:/rsa/rsa.pub # 公钥地址priKeyPath: D:/rsa/rsa.pri # 私钥地址expire: 360 # 过期时间,单位分钟filter:allowPaths:- /checkusername- /checkmobile- /sms- /register- /login- /verifycode- /categorys- /news- /brands- /specifications- /search- /goods- /comments- swagger- /api-docs

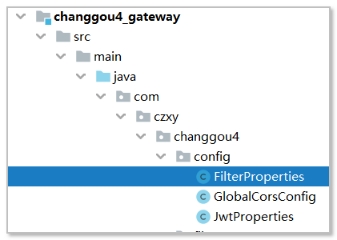

l 步骤二：创建FilterProperties配置文件，用于存放允许放行的路径

![img](https://img-blog.csdnimg.cn/img_convert/825cfaf44043d33945317a6fae573c41.png)

package com.czxy.changgou4.config;import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;import java.util.List;/* @author * @email */
@Data
@ConfigurationProperties(prefix="sc.filter")
public class FilterProperties {//允许访问路径集合private List<String> allowPaths;
}

l 步骤三：修改 LoginFilter，放行名单中配置的路径

package com.czxy.changgou4.filter;import com.czxy.changgou4.config.FilterProperties;
import com.czxy.changgou4.config.JwtProperties;
import com.czxy.changgou4.pojo.User;
import com.czxy.changgou4.utils.JwtUtils;
import com.czxy.changgou4.utils.RsaUtils;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.cloud.gateway.filter.GatewayFilterChain;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.core.Ordered;
import org.springframework.core.io.buffer.DataBuffer;
import org.springframework.http.HttpStatus;
import org.springframework.http.server.reactive.ServerHttpRequest;
import org.springframework.http.server.reactive.ServerHttpResponse;
import org.springframework.stereotype.Component;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;import javax.annotation.Resource;
import java.nio.charset.StandardCharsets;/* @author * @email */
@Component
//2.1 加载JWT配置类
@EnableConfigurationProperties({FilterProperties.class} )       //加载配置类
public class LoginFilter implements GlobalFilter, Ordered {@Resourceprivate FilterProperties filterProperties;@Resourceprivate JwtProperties jwtProperties;@Overridepublic Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {//1 获得请求路径ServerHttpRequest request = exchange.getRequest();String path = request.getURI().getPath();System.out.println(path);//2 白名单放行for (String allowPath  : filterProperties.getAllowPaths()) {//判断包含if(path.contains(allowPath)){return chain.filter(exchange);}}//3 获得tokenString token = request.getHeaders().getFirst("Authorization");//4 校验tokentry {JwtUtils.getObjectFromToken(token, RsaUtils.getPublicKey(jwtProperties.getPubKeyPath()), User.class);return chain.filter(exchange);} catch (Exception e) {ServerHttpResponse response = exchange.getResponse();response.setStatusCode(HttpStatus.UNAUTHORIZED);response.getHeaders().add("Content-Type","application/json;charset=UTF-8");DataBuffer wrap = response.bufferFactory().wrap("没有权限".getBytes(StandardCharsets.UTF_8));return exchange.getResponse().writeWith(Flux.just(wrap));}}@Overridepublic int getOrder() {return 1;}
}

后记

📢博客主页：https://manor.blog.csdn.net
📢欢迎点赞 👍 收藏 ⭐留言 📝 如有错误敬请指正！
📢本文由 manor 原创，首发于 CSDN博客🙉
⚠️ 若本文所采用图片或相关引用侵犯了您的合法权益，请联系我进行删除。
😄 欢迎大家指出文章错误，与我交流 ~
